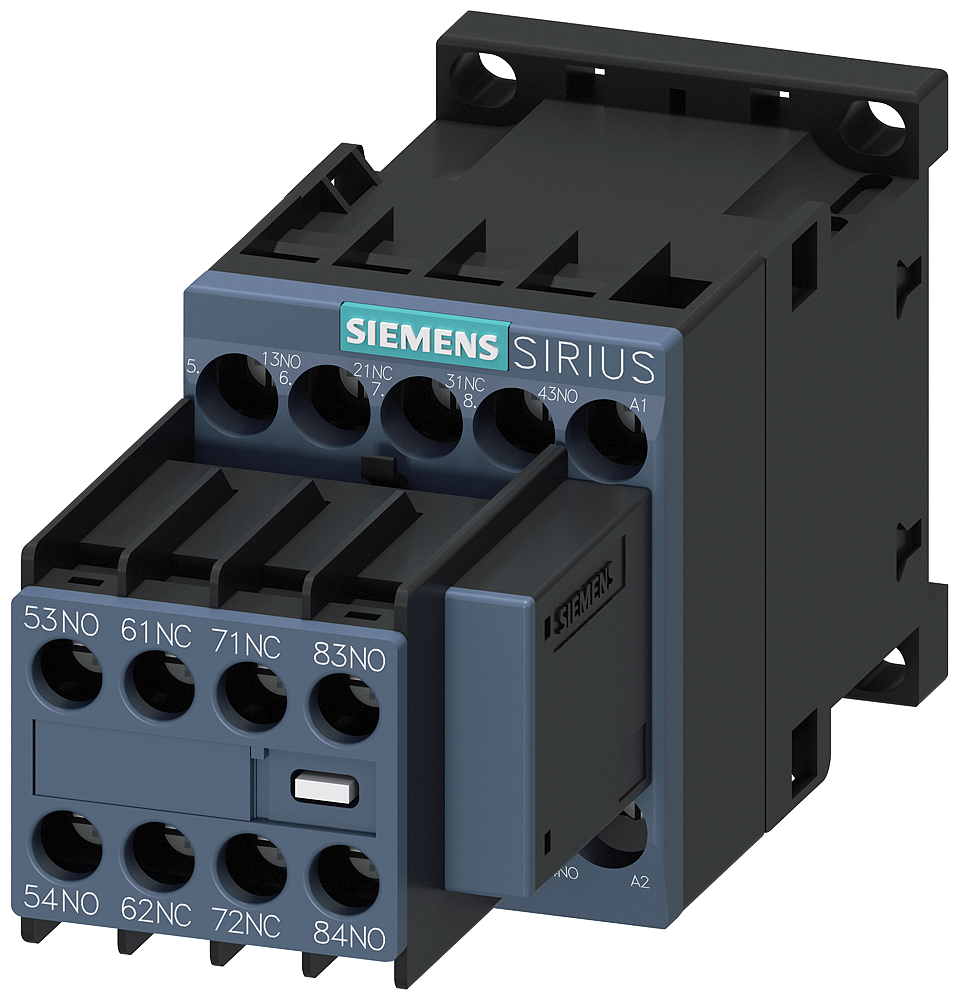

вспомогательный контактор, 4no+4нз ac 110v, 50/60 гц, типоразмер s00, пружинные клеммы, заменяемый блок доп. контактов
Ширина
0.05
Артикул
3RH2344-2AF00
Базовая единица
шт
Производитель
Siemens
Глубина
0.1245
Длина
0.0735
Количество в упаковке
1
Описание необрезанное
ВСПОМОГАТЕЛЬНЫЙ КОНТАКТОР, 4NO+4НЗ AC 110V, 50/60 ГЦ, ТИПОРАЗМЕР S00, ПРУЖИННЫЕ КЛЕММЫ, ЗАМЕНЯЕМЫЙ БЛОК ДОП. КОНТАКТОВ Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit. The SIRIUS 3RH2 contactor relays have standard-compliant terminal designations and a reliable and time-saving connection technology. Thanks to the multiplication of outputs, simultaneous switching of several auxiliary circuits is possible. All contacts are available with positively driven operation for safety applications as well as SUVA versions. The contactor relays are climate-resistant, have a high contact reliability and are suitable for use worldwide thanks to the corresponding approvals (e.g. IEC and UL/CSA). They are available with AC or DC operation and with screw or spring-type terminals. The basic version of the contactor relays is a 4-pole design which can be extended up to 8 poles by means of snap-on auxiliary switches. The extensive range of accessories for the 3RT2 contactors in sizes S
Минимальный заказ
1
Номин. напряжение питания цепи управления Us AC 60 Гц
110
Количество вспомогат. нормально замкнутых (НЗ) контактов
4
Номин. рабочий ток Ie, 400 В
3
Тип напряжения управления
AC
Тип подключения вспомогат. цепей
Соединение с пружинным зажимом
