6SL30400JA000AA0

Артикул

6SL3040-0JA00-0AA0

Базовая единица

шт

Производитель

Siemens

Количество в упаковке

1

Описание необрезанное

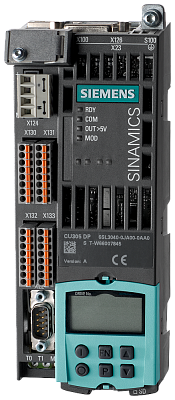

SINAMICS S110 УПРАВЛЯЮЩИЙ МОДУЛЬ CU305 DP С ИНТЕРФЕЙСОМ PROFIBUS БЕЗ КАРТЫ ПАМЯТИ Control Unit SINAMICS Control Unit CU305 DP for the SINAMICS S110 servo converter. The CU305 Control Unit controls the PM340 Power Module via the PM-IF interface. For example, for diagnostic purposes, a BOP20 Basic Operator Panel can be snapped directly onto the CU305. Further, for extensive diagnostics and commissioning functions, an Intelligent Operator Panel (IOP) can be operated remotely on the RS232 interface. At the integrated DRIVE-CLIQ socket, DRIVE-CLIQ motors or SMC Sensor Modules (Sensor Modules Cabinet-Mounted) can be connected to operate motors without a DRIVE-CLIQ interface, too. The status of the CU305 is displayed via LEDs of different colors and it can optionally be operated with a memory card. Commissioning and diagnostics of the CU305 and the connected components is performed with the STARTER commissioning tool. A memory card is available for the CU305 Control Unit. SINAMICS – the integrated drive family for e

Минимальный заказ

1

Количество цифров. входов

8

Ширина

73

Высота

183.2

Глубина

55
