6AG12324HA304XB0

Ширина, мм

0.05

Артикул

6AG1232-4HA30-4XB0

Базовая единица

шт

Производитель

Siemens

Глубина, мм

0.03

Длина, мм

0.082

Количество в упаковке

1

Описание необрезанное

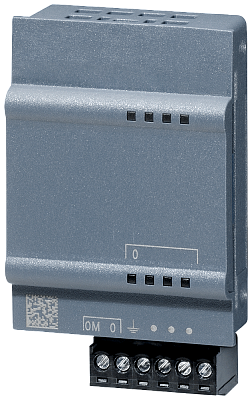

SIPLUS S7-1200 СИГНАЛЬНАЯ ПЛАТА SB1232 1AO ДЛЯ ТЯЖЁЛЫХ УСЛОВИЙ ПРИМЕНЕНИЯ, С КОНФОРМНЫМ ПОКРЫТИЕМ НА ОСНОВЕ 6ES7232-4HA30-0XB0. АНАЛОГОВЫЙ ВЫХОД 1 AO, +/- 10 В (12 БИТ РАЗР.) ИЛИ 0 - 20 MA (11 БИТ РАЗР.) SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options If you only have to extend your SIMATIC S7-1200 CPU with a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly onto the front of the controller (also possible with the CPU 1211C) and are available as digital and analog input, output and hybrid modules. A communications board with an RS 485 interface is also available. Signal boards thus permit subsequent expansion of the configuration without requiring any further space in the control cabinet. Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, conden

Минимальный заказ

1

Тип подключения

Винтовое соединение

Ширина

38

Высота

62

Глубина

21

Разделение аналог. выходов

12
