3RA28311DG10

Ширина, мм

0.047

Артикул

3RA2831-1DG10

Базовая единица

шт

Производитель

Siemens

Глубина, мм

0.055

Длина, мм

0.107

Количество в упаковке

1

Описание необрезанное

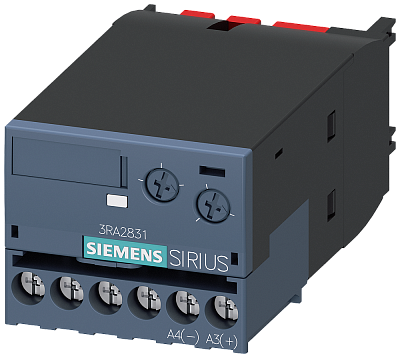

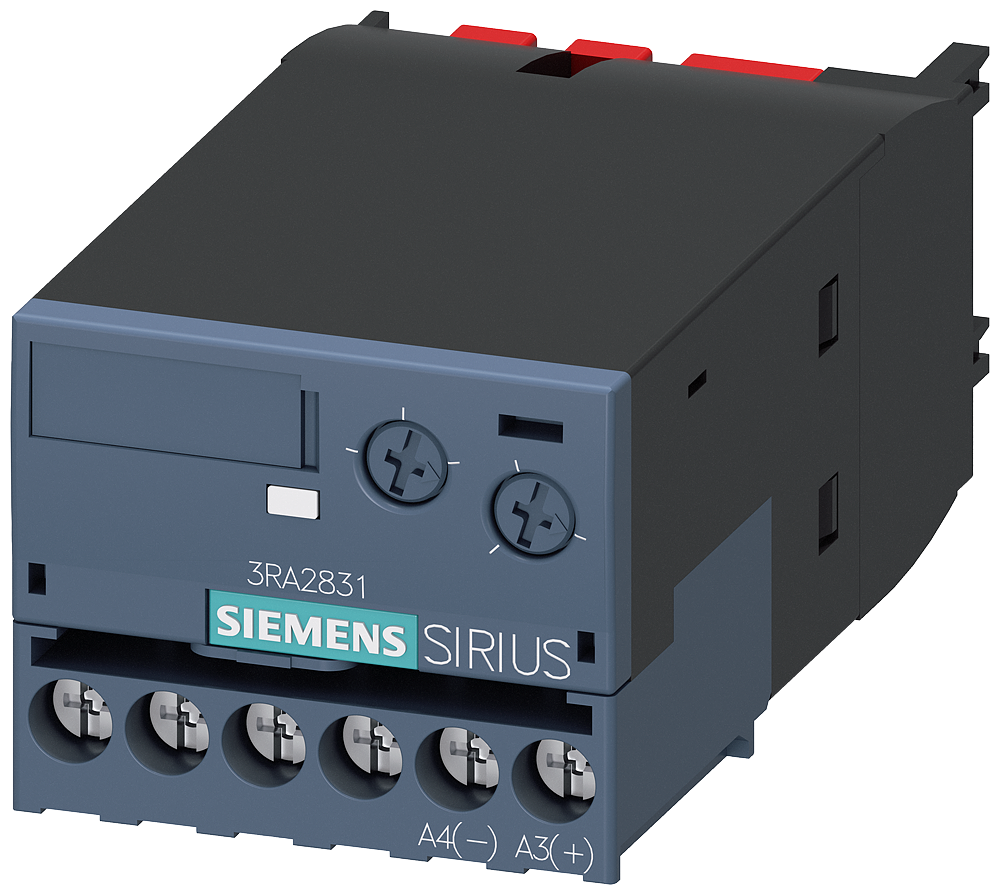

ЭЛЕКТРОННОЕ РЕЛЕ ВРЕМЕНИ ЗАДЕРЖКА ВКЛЮЧЕНИЯ С ПОЛУПРОВОДНИКОВЫМ ВЫХОДОМ 24... 90V AC/DC, ДИАПАЗОН УСТАВОК ВРЕМЕНИ 0.05...100S, ФРОНТАЛЬНАЯ УСТАНОВКА, ДЛЯ КОНТАКТОРОВ 3RT2,S2 ВИНТОВЫЕ КЛЕММЫ function module SIRIUS 3RA28 for direct-on-line starting for mounting on 3RT2 contactors and 3RH2 contactor relays for switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup or fan running-on control. The simple plug-in facility requires no tools and permits the implementation of controller-independent time functions without any additional wiring. In this way, you avoid wiring errors and reduce testing costs. The front mounting on the devices saves you space on the DIN rail. No additional protective circuit is necessary. Thanks to international approvals (e.g. IEC, CCC, UL/CSA), the devices can be used worldwide. The function modules are available for 3RT2 contactors and 3RH2 auxiliary switches in sizes S00 to S3. They can be supplied with a fl

Минимальный заказ

1

Тип включения/отключения

ansprechverzögert
