3RA28321DG10

Ширина, мм

0.05

Артикул

3RA2832-1DG10

Базовая единица

шт

Производитель

Siemens

Глубина, мм

0.055

Длина, мм

0.108

Количество в упаковке

1

Описание необрезанное

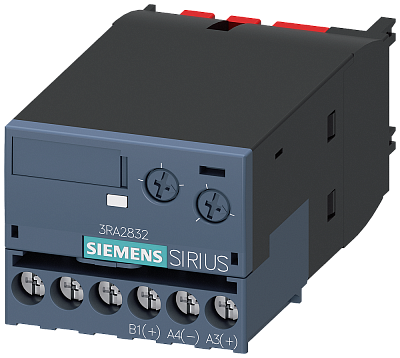

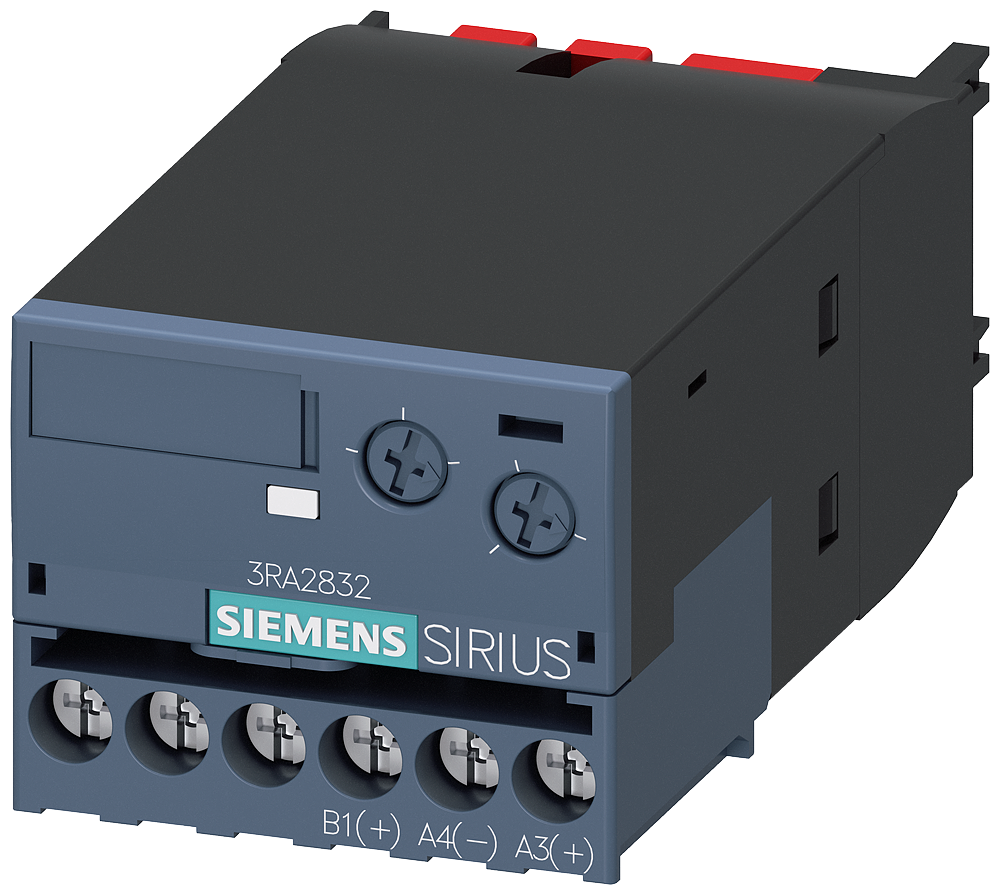

ELECTR. TIMING RELAY OFF-DELAY WITH AUXILIARY VOLTAGE AND SEMICONDUCTOR OUTPUT 24...90V AC/DC TIME RANGE 0.05...100S FOR SNAPPING ONTO THE FRONT, FOR 3RT2 CONTACTORS, S2 SPRING-LOADED TERMINALS function module SIRIUS 3RA28 for direct-on-line starting for mounting on 3RT2 contactors and 3RH2 contactor relays for switching operations involving time delays in control, starting, protection and regulation circuits, e.g. for cascaded motor startup or fan running-on control. The simple plug-in facility requires no tools and permits the implementation of controller-independent time functions without any additional wiring. In this way, you avoid wiring errors and reduce testing costs. The front mounting on the devices saves you space on the DIN rail. No additional protective circuit is necessary. Thanks to international approvals (e.g. IEC, CCC, UL/CSA), the devices can be used worldwide. The function modules are available for 3RT2 contactors and 3RH2 auxiliary switches in sizes S00 to S3. They can be supplied with

Минимальный заказ

1

Тип включения/отключения

rückfallverzögert
