3RT23161BG40

Ширина, мм

0.05

Артикул

3RT2316-1BG40

Базовая единица

шт

Производитель

Siemens

Глубина, мм

0.0775

Длина, мм

0.0615

Количество в упаковке

1

Описание необрезанное

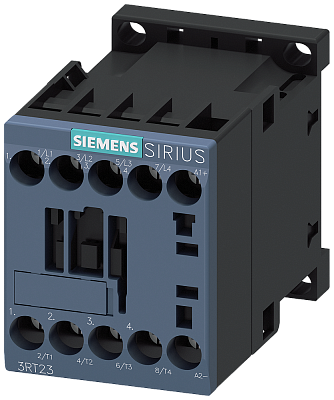

КОНТАКТОР, AC-1, 12КВТ/400V, AC-1 18A, DC 125V, 4-POLE, 4NO, ТИПОРАЗМЕР S00, ВИНТОВЫЕ КЛЕММЫ Contactor SIRIUS 3RT23 for switching resistive loads. The 3RT23 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your configuration. The front-panel terminals simplify the wiring. 3RT23 contactors are climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA). They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and v

Минимальный заказ

1

Номин. напряжение питания цепи управления Us постоян. тока DC

125

Номин. коммутируем. мощность при AC-3, 400 В

4

Количество нормально разомкнутых (НО) силовых контактов

4

Номин. раб. ток Ie при AC-3, 400 В

9

Номин. раб. ток Ie при AC-1, 400 В

18

Тип напряжения управления

DC

Номин. раб. ток Ie при AC-4, 400 В

8.5

Номин. коммутируем. мощность при AC-4, 400 В

4

Тип подключения силовой электрич. цепи

Винтовое соединение
